Goldfield Weighing Solutions

18,500.00 - 23,500.00 / piece

5 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier, Retailer, Wholesaler, Trader, Distributor, Importer, Buying House
Application Industrial
Type Construction Crane, Crane
Country of Origin India
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Brand Name
GOLDFIELD
Type of Weighing Scale
Panel Mounting Indicator
Model Name / Number
GWS P96
Max. Weighing Capacity Kg
SETTABLE
Least Count / Accuracy
SETTABLE
Internal Resolution
1,60,00,000
Display Resolution
2,92,000
Display Type
Digital LED
Display / Digit Type
0.56” Seven Segment
Display Size
14 mm
Display Led Color
Bright Red / Green
Material of construction
ABS Plastic Housing
Mode of Operation
Kg / Gram / Liter
Usage / Application
Commercial
Power Supply
230 V AC Mains else DC 12V/24V
Frequency Supply
50Hz, ±10%
Feature
Standard weighing scale
Operating/Working Temperature
0˚ C to 45˚ C
Portable
Yes
Response Time
50 mSec to 70 mSec
Taring Range
Full Load Tare
Class
II / III
Humidity
10% to 95% Relative humanity (Non-condensing)
Linearity
99.9% of the Rated capacity ±1%
Mounting Type
Panel Mounting
Number of Digits
6
Number of Switch Keys
4
Repeatability
0.019 %FS
Calibration
Semiautomatic
Warranty
1 Year against any manufacturing defects
Product Code
00
Port
Mazgaon
Payment Terms
Other
Delivery Time
2-3 DAYS
Packaging Details
Thermocol in corrugated Box

UNIQUE FEATURES:-

  •  MS housing for light in weight
  •  RELAY/SET POINT output according weighments
  •  One/Two/Three Relay i.e. up to six Set point output features
  •  External Load connection point, to connect load externally
  •  Internal power supply for relay energized
  •  Relay can operate on AC 230V or DC 5V / 12V / 18V / 24V
  •  Relay Limit manually settable for ON & Off (Energized/Deenergized)
  •  Tolerance is also settable for accurate output
  •  6 Volt PTH type Glass epoxy Motherboard with High Sensitivity Features
  •  Simple and Instant Operation
  •  Lacquer Protected Motherboard to Avoid Moisture
  •  Auto Standby Mode for Low Consumption of Power
  •  14 mm Bright Red LED Display with High Brightness
  •  Advanced Micro Controller technology base Mother Board
  •  AVIA technology base 24 Bit delta sigma ADC for higher resolutions
  •  Rough and Tough model for daily uses
  •  Linearity from least count to full capacity
  •  Heavy duty New Model in new design
  •  Auto Zero Tracking System
  •  Easy to operate
  •  User Friendly
  •  Auto Power Saver
  •  Also available in OEM base
  •  The best battery backup than another card
  •  6 Volt / 4.5 Ah Battery for more Back up (OPTIONAL)

Yes! I am interested

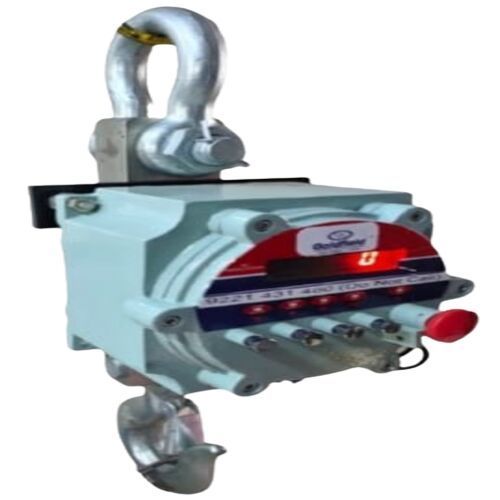

Looking for "Flameproof Crane Scale" ?
